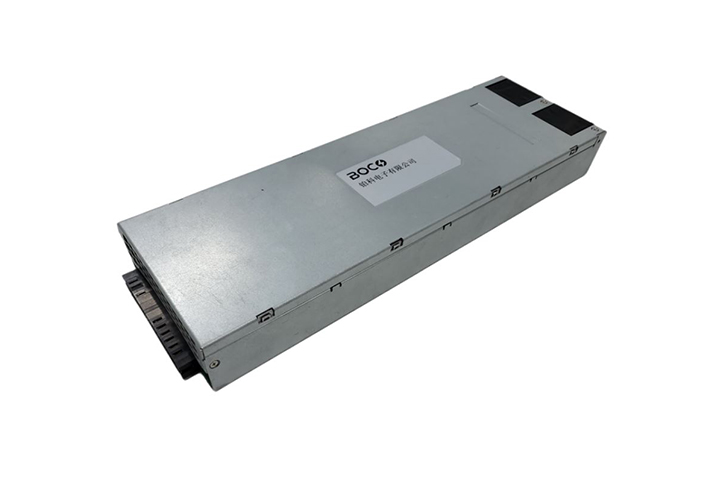

110BDC48-2000FB-95% Bi-directional AC-DC Converter
BOCO Electronics
Description Specification Message
  • 110BDC48-2000FB-95% is a digital controlled 2000W bidirectional AC-DC converter, which adopts the third generation power semiconductor devices with 95% maximum efficiency. The rectification mode supports full range of AC input and 48Vdc output with 42Vdc-58Vdc voltage regulation range. The inverter mode supports 42Vdc-58Vdc input and 100Vac/120Vac output. Parallel operation is available for both modes. The converters are widely used in portable and home energy storage based on 48Vdc battery pack, DC microgrid, V2G system and other new energy application scenarios.
Input/Output
Input/Output
Category Bi-directional AC-DC Converter
Output Power 2000W
AC Voltage 110Vac
DC Voltage 48V
rectification Mode
Input Voltage Range 90-264Vac
Input Current 13A @ 200Vac
Output Voltage Range 42-58V
Output Current 38A @ 52V
Efficiency Peak 95%
Inverter Mode
Input Voltage Range 42-58V
Input Current 45A @ 48V
Output Voltage Range 100-120Vac
Efficiency Peak 93.3%
Mechanical Features
Dimension(LxWxH) 330x104x40 mm^3
Weight 1.2kg
Cooling Fan Cooling
Socket Bolt
Environment
Operating Temperature -5 ~ 55℃
Storage Temperature -40 ~ 85℃
Operating Humidity 5% ~ 90%
Altitude 5000m
Safety/EMC?
Safety CCC, CE, CB
EMI CE Class A, RE Class A
Surge 1KV DM, 2KV CM
Other Features?
Communication PMbus
Control Complete Digital Control
Protection OV,UV, OC, Short, OT, Fan Failure
MTBF 300k hours
