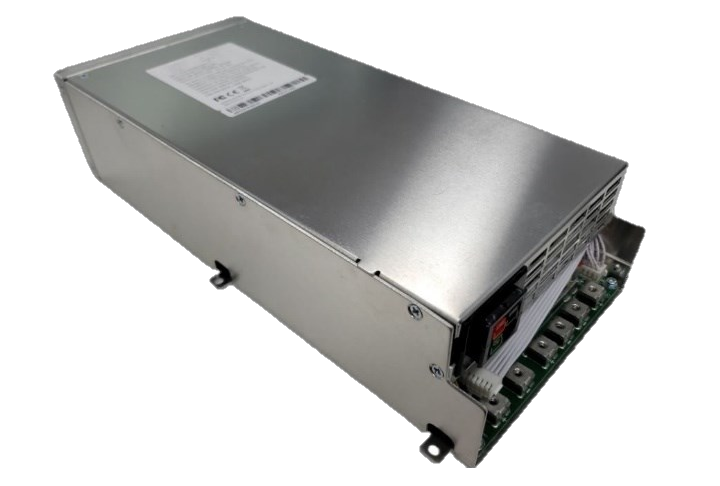

HVAC 3600W 12V 95% Efficiency ASIC Power Supply
BOCO Electronics
BOCO Electronics
Description Specification Message
  • BCJ36002-11 is a highly efficient and reliable computing power supply with a total output power of 3600W, an efficiency of 95% at 12V/280A, a size of 300mmx 131mm x 71mm, and a power density of 21W/inch^3. High reliability, suitable for a variety of complex environments (high temperature, high humidity, extremely low temperature, high environmental pollution levels).
Input/Output
Output Power 3600W
Main Output Voltage 10.5-14.5V
Max Output Current 300A
Auxilary Output Voltage 12.3V
Auxilary Max Output Current 20A
Input Voltage Range 220-277VAC
Efficiency 95%@12V/280A
Power Density 21W/inch^3
Mechanical Features
Dimension(LxWxH) 300x131x71 mm^3
Weight 2.95kg
Cooling Fan Cooling
Input Socket PA45
Output Connector M4 Screw
Environment
Operating Temperature -40 ~ 70℃(derated at >55℃)
Storage Temperature -40 ~ 85℃
Operating Humidity 5% ~ 95%
Altitude 4000m
Safety/EMC?
Safety FCC, ICES, CE-EMC, CE-LVD
EMI FCC, ICES, CE-EMC, CE-LVD
Surge FCC, ICES, CE-EMC, CE-LVD
Other Features?
Communication I2C
Control Complete Digital Control
Protection Input OV,UV, Output OV,UV,OC, Short, OT, Fan Failure
