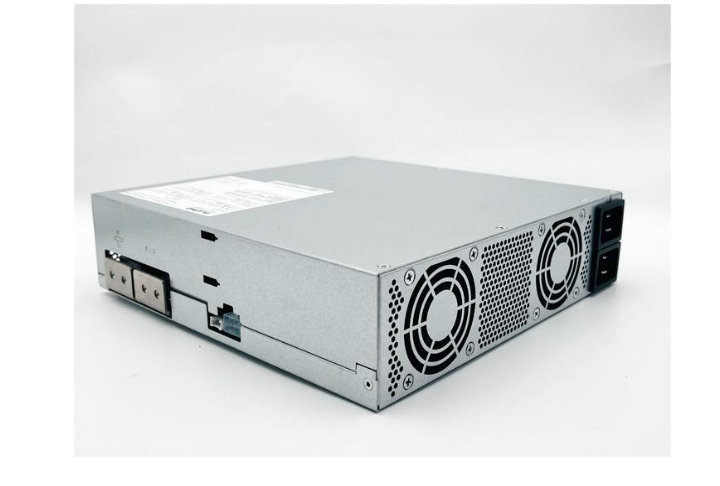

7500W 97% Efficiency ASIC Power Supply
BOCO Electronics
BOCO Electronics
Description Specification Message
  • BCJ75002-01 is a highly efficient and reliable computing power supply with 7500W total output power, 97% efficiency, 249mm x 214.2mm x 63mm dimensions, and a power density of 30.8W/inch^3. High reliability, suitable for a variety of complex environments (high temperature, high humidity, extremely low temperature, high environmental pollution levels).
Input/Output
Output Power 7500W
Main Output Voltage 11.5V-15V
Max Output Current Liquid cooling 598.4A；Fan cooling 416.7A
Auxilary Output Voltage 12.3V
Auxilary Max Output Current liquid cooling 1.6A/fan cooling16.3A
Input Voltage Range 180-264VAC
Efficiency 97%
Power Density 30.8W/inch^3
結構設計
Dimension(LxWxH) 253 x 249 x 63.3
Weight 4.9kg
Cooling liquid cooling/ fan cooling
Input Socket Double input C20
Output Connector M4 screw lock attached
安規 / EMC
Operating Temperature Liquid cooling 0～80℃ Fan cooling -40～53℃
Storage Temperature -20 ~ 70℃
Operating Humidity 90%
Altitude 10000m
其他特點?
Communication I2C
Control Complete Digital Control
Protection Over voltage, over current, short circuit, overheating
