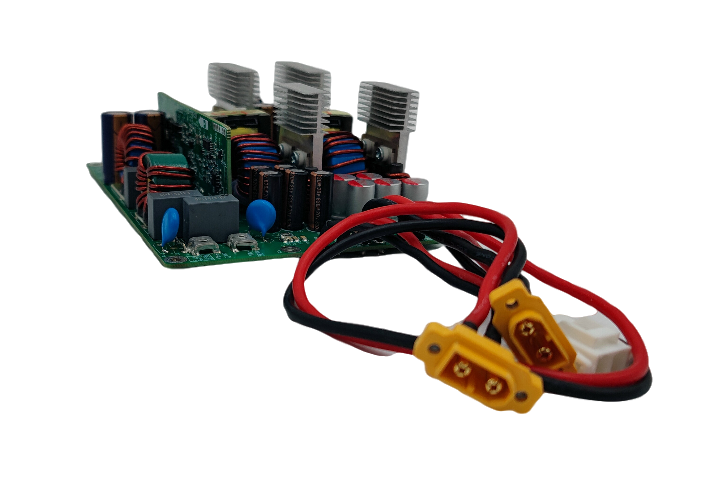

BBK8402-01FC Unidirectional DC Input
BOCO Electronics
BOCO Electronics
Description Specification Message
  • BBK8402-01FC is a high efficiency, high power density DCDC. Support 48 VDC battery system input, battery side voltage range 40V to 56V, output 24V/20A and 12V/(30A+10A), the maximum output power of 840W. Among them, the 12V output is the car charge output, which meets the needs of the car 12V battery charging. Fan forced air cooling design, low noise, high reliability. The DC output of the DCDC has over voltage, under voltage protection, over current, short circuit protection, and over temperature protection.
Input/Output
Output channel 2
Input voltage range 40～56V
24V output current 24V
24V output current 20A
24V output voltage ripple 3%
24V output current 94%
12V output voltage Maximum 13.2V
12V output current 10A/30A
12V constant current Settings 1.12V1 output reaches 10A and enters constant current state 2.12V1+12V2 output reaches 30A and enters constant current state 3.12V2 output reaches 30A and enters constant current state
12V efficiency 93%
Structural Features
Dimension(LxWxH) 155x105x62.5(mm)
Weight 0.6Kg
Cooling Fan Cooling
Input Socket M3 Welding terminal
Output socket C6201HM-02P/XT60E-M
Environment
Operating Temperature -10℃～45℃
Storage Temperature -20℃～75℃
Operating Humidity 10%-90%
Altitude 3000m
Safety/EMC?
Safety UL2743
EMI Class B
Other Features?
Communication RS485
Control Analog control
Protection Over voltage, under voltage, over current, short circuit and over temperature protection
MTBF 100K
